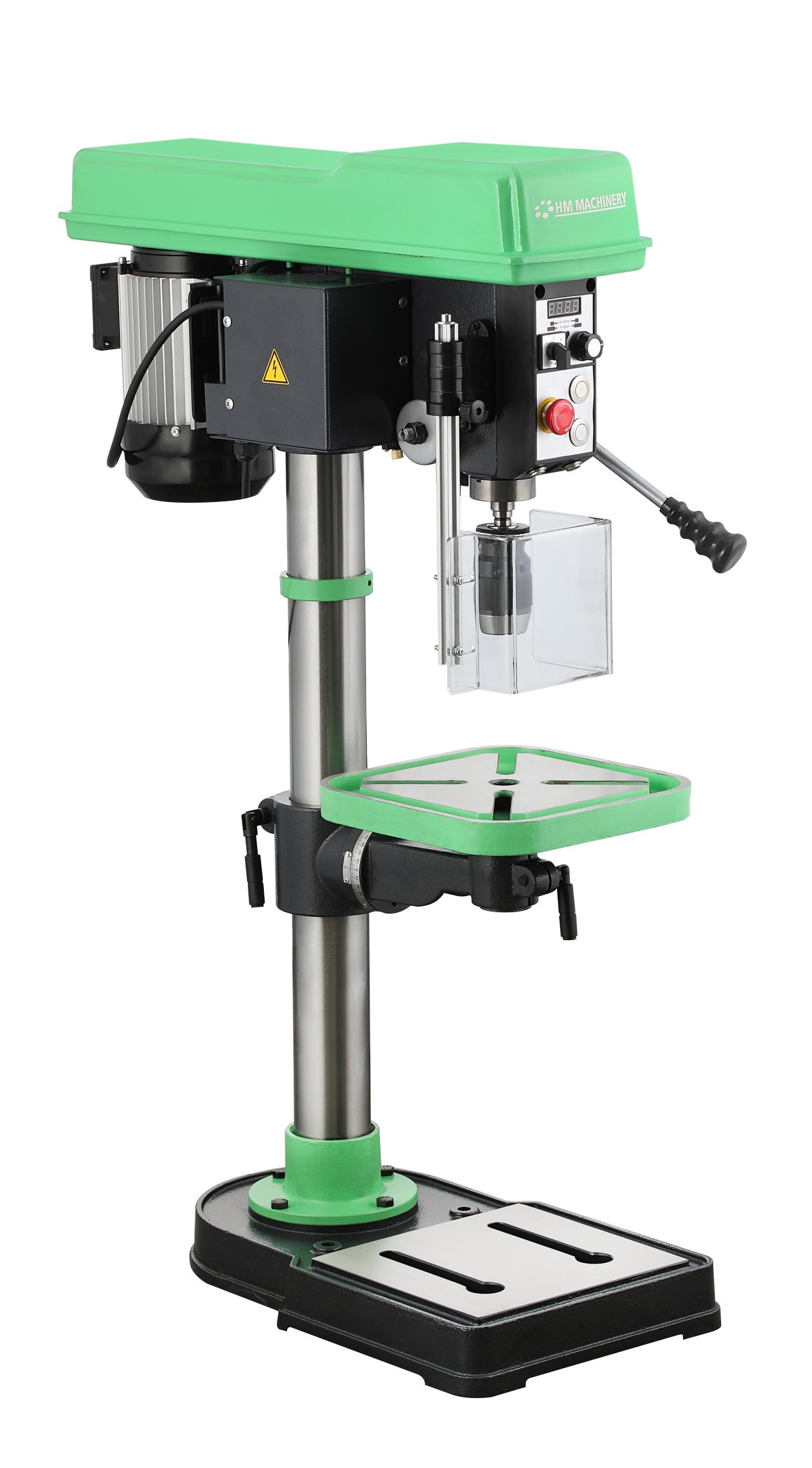

V-belt driven drill press

HM SBM 20VB

Item number: #100811000

Description

HM SBM 20VB is a professional drill press for workshop and industry

Standard features:

  • Variable speed 0-3000 rpm.
  • Left/right spindel direction
  • Morse Taper No. 2
  • Complete with auto loc...
    Read More >>
×

Product Specifications

Morse Taper 2
Drill chuck (mm) 16
Voltage 3x400V - 50 Hz
Number of spindle speeds 2
Drilling Capacity (ø mm) 20
Rpm 30-3000
Motor (Watt) 750
Throat depth (mm) 190
Swing Capacity (mm) 380
Max. distance spindle/table (mm) 470/670
Max. spindle travel (mm) 80

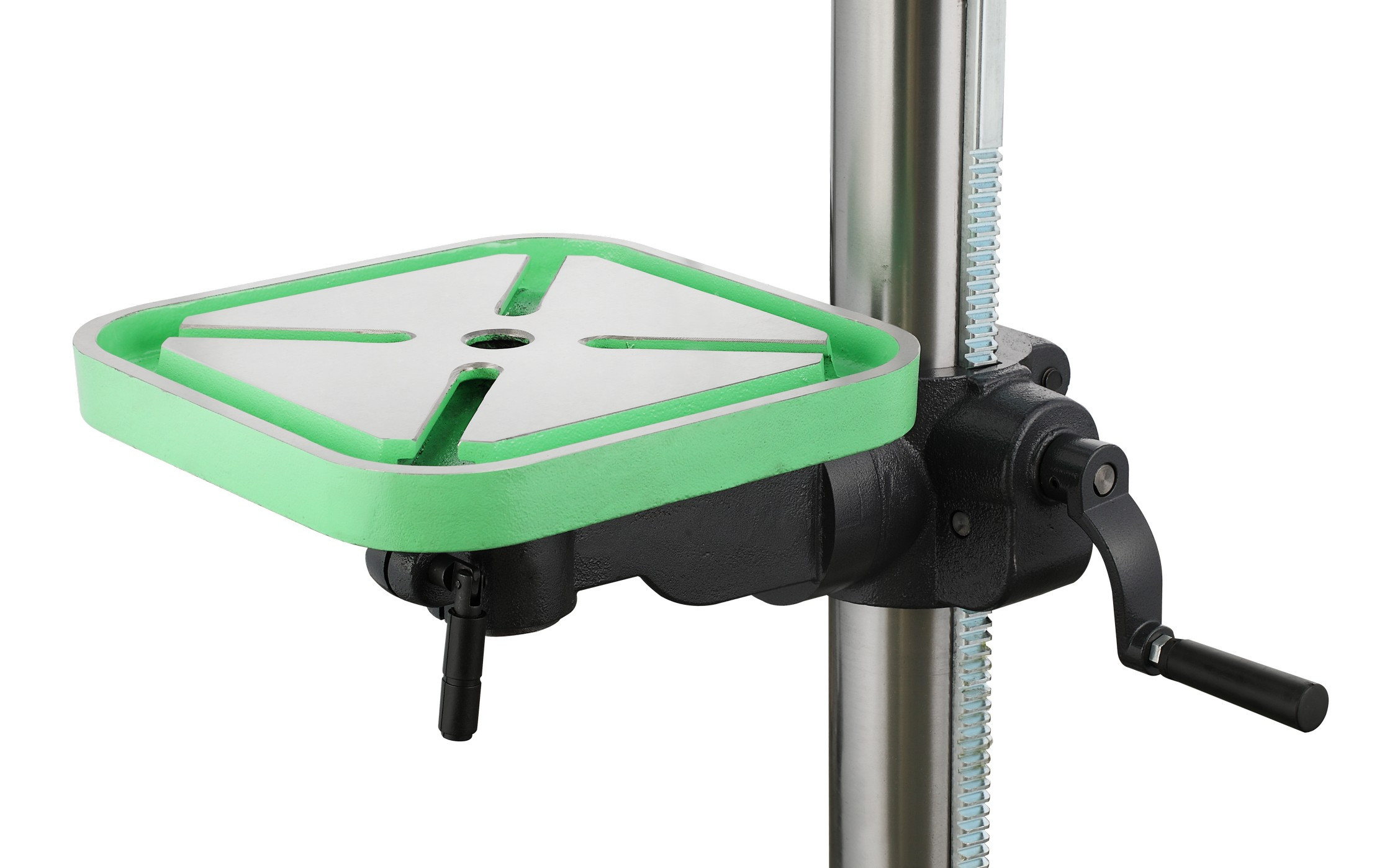

Max. tilt of table (+/-) 45°
Size of table (mm) 270x270
Size of base (mm) 520x310
Bench model 1
Height (mm) 1065
Max. load on table (kg) 10 kg.
Net weight (kg) 61

HM Machinery - Quality since 1968

HM Machinery was founded in 1968 in Thisted in Northern Denmark. It’s always been known for its production of high-quality sheet metal working machines, mainly in the beginning for the thin sheet metal industry. Later on, the production has extended to heavy duty hydraulic machines, belt grinders and geared head drilling machines.

The product range today is very wide and consists of geared head drilling machines, corner notchers, folding machines, sheet deburring machines, guillotine shears, press brakes, bending rolls, tube deburring machines, lathes, deburring and finishing machines, belt grinders, pipe notchers, centerless grinders, beading machines and dust extractions as well as filter units.

The products are manufactured by Scantool Group at our production sites in Denmark (Brovst), Poland, Turkey and Taiwan. Our trademarks are quality, attention to detail and experience. We have been manufacturing a wide range of industrial machines for many years, serving hobbyists, trades and industry.

Many of the motors which are installed in our machines are manufactured at our motor production in Brovst or by one of our suppliers according to our specifications. We have set a very high-quality standard and offer a 5-year warranty* for our motors.

All machines are proudly manufactured according to our high standards, specifications and are representing our HM Machinery brand – With this we guarantee you top quality and service.

*Applies only to selected machines.
