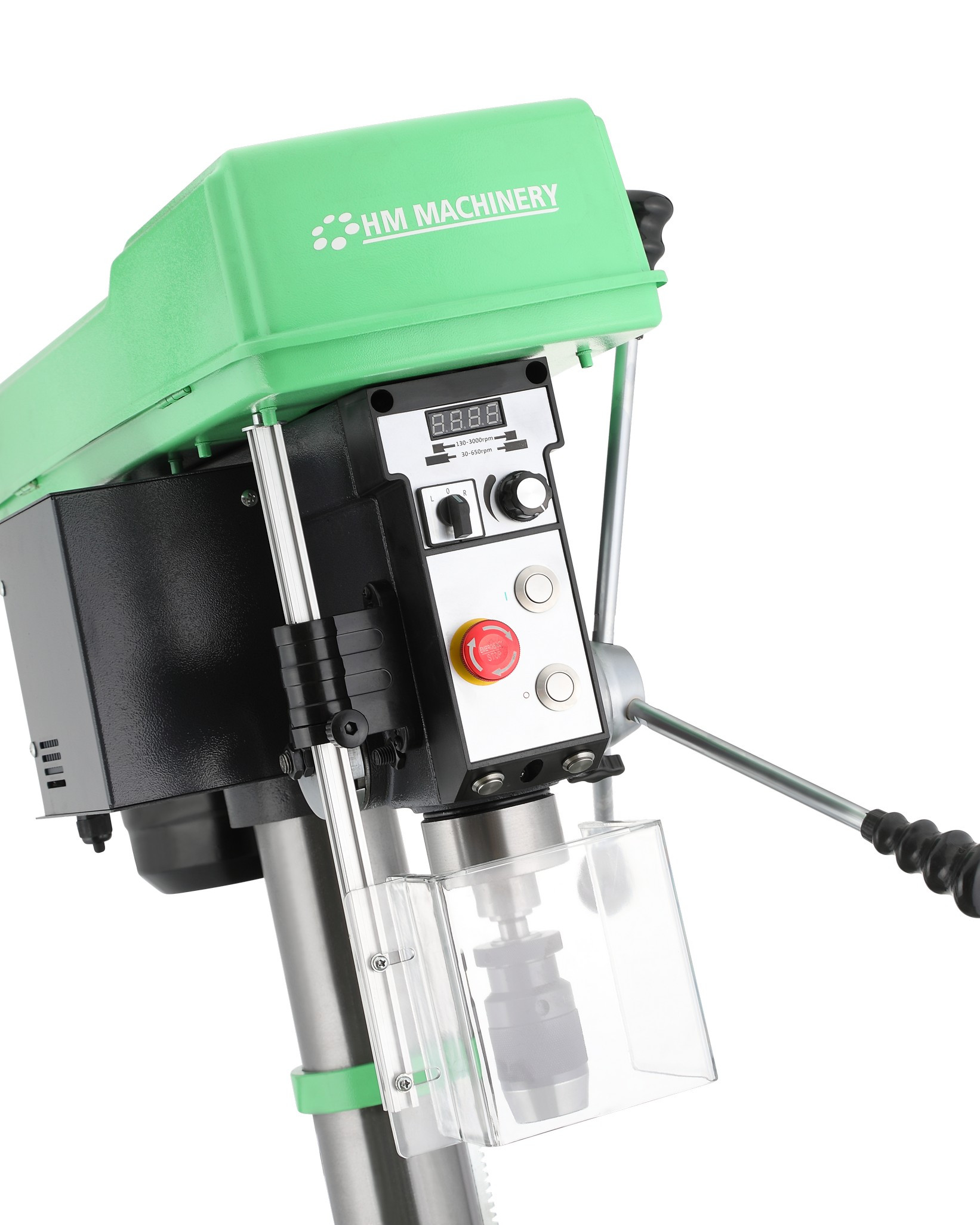

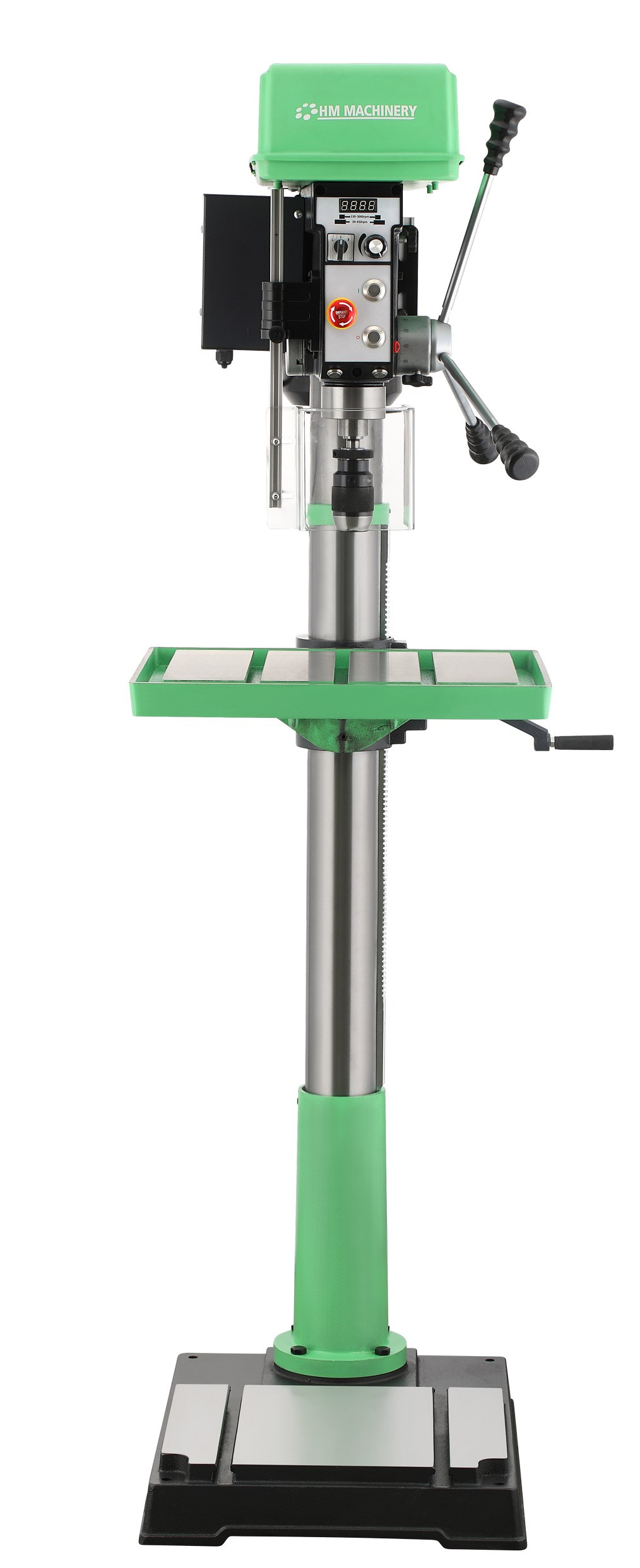

V-belt driven drill press

HM SBM 32VF

Item number: #100813000

Description

HM SBM 32VF is a professional drill press for workshop and industry

Standard features:

  • Variable speed 0-3000 rpm.
  • Left/right spindel direction
  • Morse Taper No. 3
  • Complete with auto lock...
    Read More >>
×

Product Specifications

Morse Taper 3
Drill chuck (mm) 16
Voltage 3x400V - 50 Hz
Number of spindle speeds 2
Drilling Capacity (ø mm) 32
Rpm 30-3000
Motor (Watt) 1500
Throat depth (mm) 255
Swing Capacity (mm) 510
Max. distance spindle/table (mm) 680/1170
Max. spindle travel (mm) 120

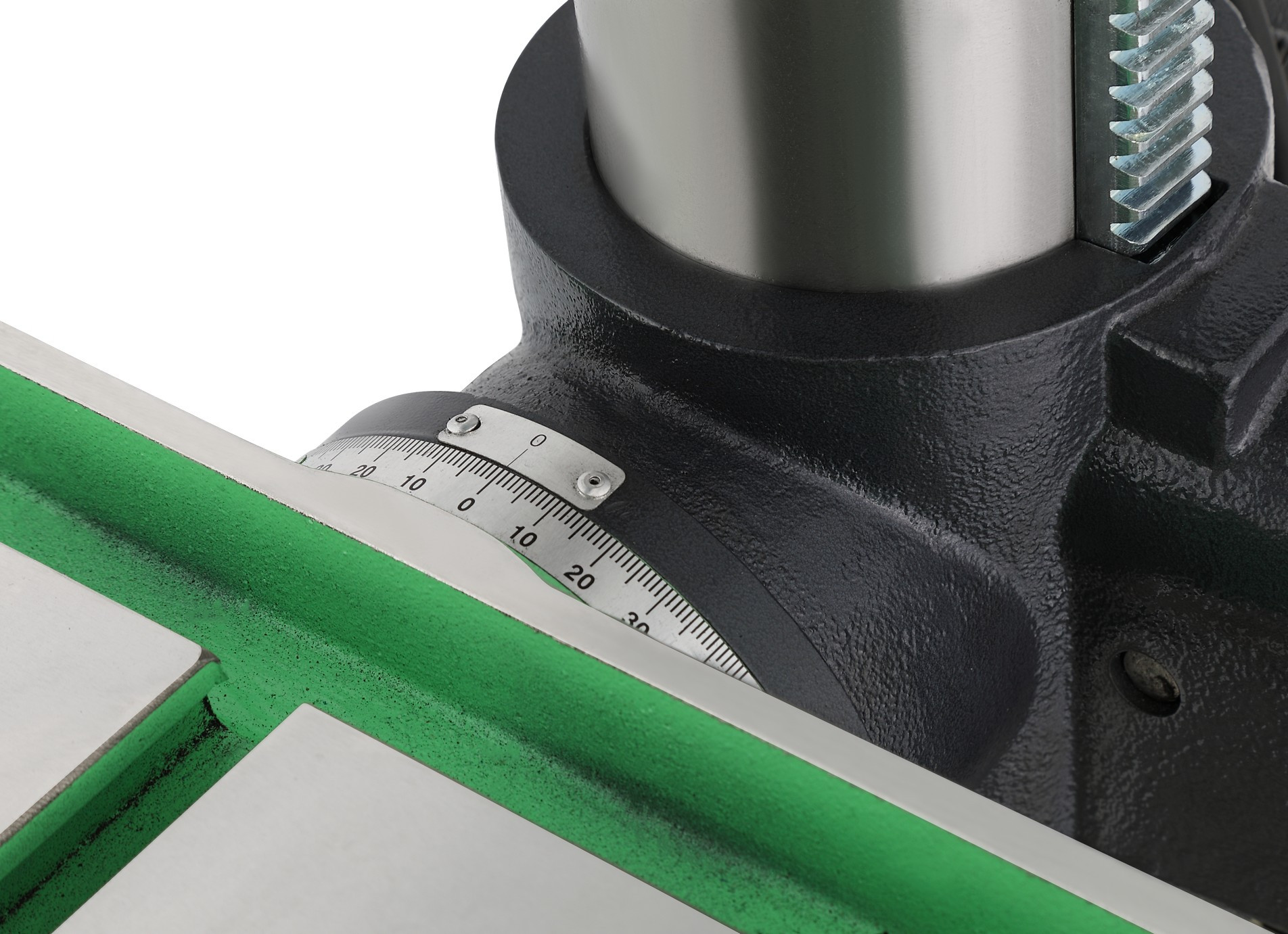

Max. tilt of table (+/-) 45°
Size of table (mm) 475x425
Size of base (mm) 575x450
Bench model 1
Height (mm) 1710
Max. load on table (kg) 10 kg.
Net weight (kg) 107

HM Machinery - Quality since 1968

HM Machinery was founded in 1968 in Thisted in Northern Denmark. It’s always been known for its production of high-quality sheet metal working machines, mainly in the beginning for the thin sheet metal industry. Later on, the production has extended to heavy duty hydraulic machines, belt grinders and geared head drilling machines.

The product range today is very wide and consists of geared head drilling machines, corner notchers, folding machines, sheet deburring machines, guillotine shears, press brakes, bending rolls, tube deburring machines, lathes, deburring and finishing machines, belt grinders, pipe notchers, centerless grinders, beading machines and dust extractions as well as filter units.

The products are manufactured by Scantool Group at our production sites in Denmark (Brovst), Poland, Turkey and Taiwan. Our trademarks are quality, attention to detail and experience. We have been manufacturing a wide range of industrial machines for many years, serving hobbyists, trades and industry.

Many of the motors which are installed in our machines are manufactured at our motor production in Brovst or by one of our suppliers according to our specifications. We have set a very high-quality standard and offer a 5-year warranty* for our motors.

All machines are proudly manufactured according to our high standards, specifications and are representing our HM Machinery brand – With this we guarantee you top quality and service.

*Applies only to selected machines.
