Lathe
Swing over bed | 460mm |
Swing over gap | 690mm |
Swing over cross slide | 270mm |
Tail diameter | Ø60mm |
Tail height | 230mm |
Spindlenose Camlock | D1-8 |
Distance between centers | 1000mm |
Width of bed | 300mm |
Spindlebore (mm) | 80mm |
Taper of spindlenose | MK-7 |
Number of spindle speeds | 12 |
Range of spindle speed | 25-1700 rpm |
Metric threads | 0.1~14mm |
Imperial threads | 2~112 T.P.I |
Max. travel of compound slide | 128mm |

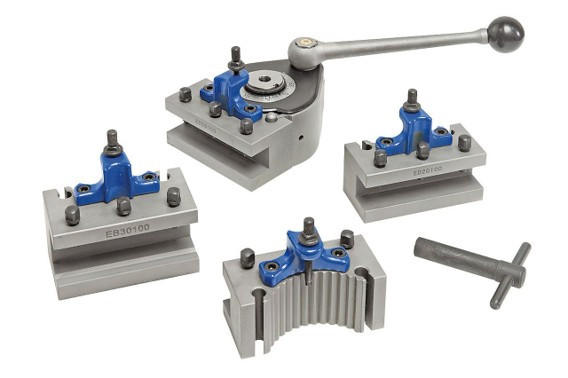

Type of toolholder | Multi |
Range of longitudinal leed | 0.03~1.7mm |
Max. travel of cross slide | 285mm |
Max. travel of main slide | 1500mm |
Spindle travel | 130mm |
Taper in Tailstock Spindle | MK-4 |
Voltage | 3x400V |
Main motor | 5,5kW |
Length (mm) | 2200 |
Width (mm) | 1080 |
Height (mm) | 1370 |
Weight | 1655 kg |
